WAS.855.450.ZU.44

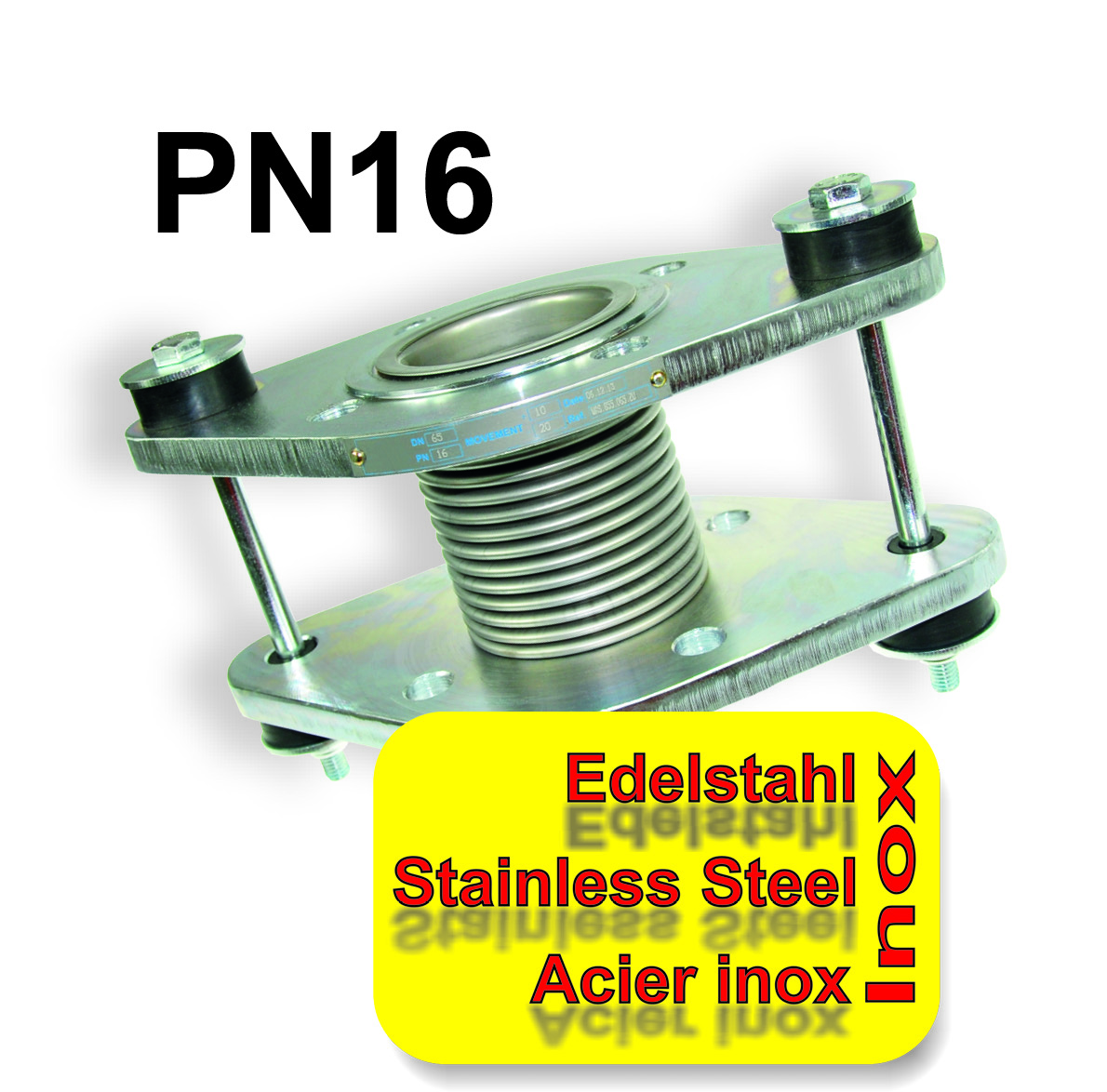

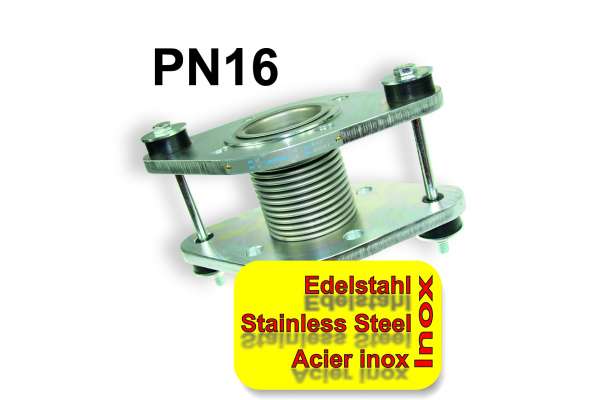

Expansion joint DN450, PN16 - Typ Bebop

flanged, TL: 200 mm

Bellows: 1.4404, multi-ply, without liner, movement +10/-20mm
Flanges: stainless steel 1.4404, PN16
with limit-rods

*

The item has been added to your shopping cart.
The item has been added to your shopping cart.
The item has been added to the watch list.
The item has been added to the watch list.

This article ist not available. Yo can get a message when this article will be available again. Please fill in your mail adress and click on "send".



Aufbau/Design: Reaktionskraftfreier Schwingungsdämpfer mit Losflanschen nach EN 1092-1 in Edelstahl
Balg mehrlagig, mit Zugbegrenzung und Dämpfungselemente aus EPDM oder St
Material: Flansche: 1.4404 (V4A)
Federkörper: 1.4404 (V4A)
Zugstangen: 1.4404 (V4A)
Dämpfungselement: bis 90°C EPDM, > 90°C Edelstahl
Nenndruckstufe: PN6 / PN10 / PN16
Einsatztemperatur: 20° C bei 1.00E+07 Zyklen
Max. Einsatztemperatur 450°C unter Berücksichtigung des Temperatur-Reduktionsfaktors Kp
Bei Temperaturen >90°C Metallkissen verwenden
Handhabung/Montage: Diese Komponenten sind immer nur mit den entsprechenden Abstände der Fix-/Führungspunkte zu verwenden.
Für die korrekte Dimensionierung dieser Punkte ist in den Tabellen die laterale Federkonstante Cy angegeben

Einsatzgebiet: Pumpen, Kompressoren, Motoren, Hausinstallationen, Heizungen,
Gas-, Wasser- und Abwasseranlagen, Klimaanlagen, Wärmerückgewinnungsanlagen
Normen: EJMA , EN1092-1 , EN 13480-3 , EN 1333

Last Viewed

The item has been added to your shopping cart.
The item has been added to your shopping cart.
The item has been added to the watch list.
The item has been added to the watch list.

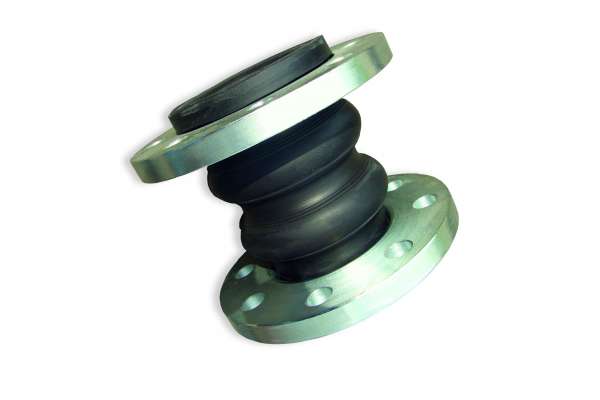

EPDM-Gummikompensator PN6, DN125, Doppelbalg, Typ Rock Show details
